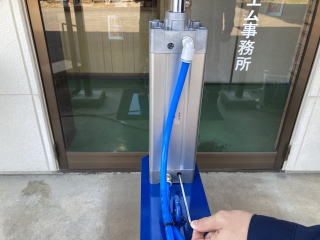

| Drain button |
Absorber adj |

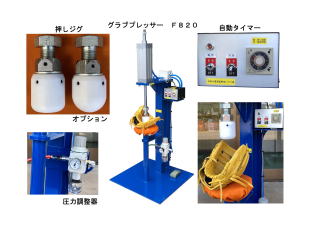

Standard← →Pocket option |
 |
 |
 |
| Easy grab maintenance |
【How to use】
Sideburns for molding baseball grabs.
【Spec】

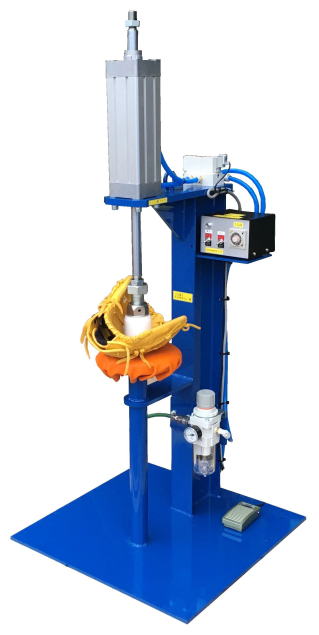

Model：Ｆ８２０ Pushing force：200kg～400kg・460lb～1000lb
Power source：100/110V－10W Mass：64kg/141lb
Required pressure：0.6Mpa or more Recommended air compressor：2.2Kw ｏｒ more
Air supply plug：２０ＳＭtype
※ If the power supply of the shop is only 100V, set the compressor to 0.75KW
and addition reservetank 100-120 liters. Please add.
①User's manual Manufacturing style Pressure measurement |
| |

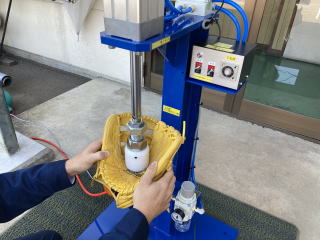

| Easy work even for women |
Specified color (OP) |
For small compressors, add an air tank, 40 liters |
 |
 |
 |
| Installation example of grab presser + compressor + air tank (for 100/110V) |
|
 |
【Combination of Japanese compressor and air tank】
Power supply：100/110V-0.75KW Quiet type 52db Mass: 88kg (made by Hitachi)
Dimensions: Width 640 mmx Depth 537mmx Height 867mm
Exhaled air volume: 80L / min
[Air tank] Vertical example 120 liters (made by anest-iwata).
Dimensions: Height 1370 x Diameter about 600 Mass: 60 kg
[F820] Grab presser
Power supply：Single-phase 100/110V-10W
Dimensions: Width 600mm x Depth 600mm x Height 1340mm Mass: 64kg/141lb |
| Installation example of grab presser + compressor (for 200/220V) |
 |
[Compressor] No oil-free air dryer (by Hitachi)
Power supply：3-phase 200V-2.2KW Quiet type 53db Mass: 149kg/328lb
Dimensions: Width 745mm x Depth 620mm x Height 960mm
Exhaled air volume: 265L / min
[Air tank]
2.2KW compressor does not require air tank
[F820] Grab presser
Power supply：Single-phase 100/110V-10W
Dimensions: Width 600mm x Depth 600mm x Height 1340mm Mass: 64 kg/141 lb
|
[About the above proposal example]
There are quite a few types of compressors and air tanks
A relatively common model is posted.
[When the machine arrives]
Please help me when you arrive because the item is heavy
[Installation / Assembly]
Construction is required for operation
Air piping / power connection work / construction materials
(Construction materials are not included) |
