| 04 Demagnetizer |
The place of work troubled by remnant magnetization:The product which is
tinged with magnetism damages the product itself.Please be sure to demagneting.The
remnant magnetization with which it is tinged for a product is Demagnetized
duing processing.The edged tool to which cutting powder stuck is dangerous.
Such big magnetism remains that it heavy machines.The bruise of the product
which approaches cutting powder is canceled.There is character with which
magnetism tends to be tinged as super-hardwood.A machine part, autoparts,
a screw bearing and a hard pin press metallic mold, Cutting of a hard material
chip / cutting byte, a cutting chip drill edge and a saw blade.It is suitable
for the demagnetiz work of an electric part, cast products, etc.Remnant
magnetization can do demagnetiz to 1〜3G in an instant also a certain work
more than 100G (gauss). The demagnetiz method of material:Demagnetizer
is simply possible by placing material on insertion or a table at a demagnetiz
machine, and separating material from a demagnetiz machine about 200mm
to 300mm after that (it is made to pass).
Although demagnetiz time also approaches a work material, it can usually
do demagnetiz enough in about 1〜2 seconds. I do the demagnetiz examination
of material.Please contact us. |
| Standard Table type Demagnetizer |
| AMD-40B |
|
AMD-50B |
|
|
 |
|
 |
|
 |
| In AMD series, it is the design with total sufficient model cooling efficiency
with a cooling fan. |
able type Demagnetizer machine standard table
| Model |
power input |
Power supply
capacity
(current) |
using rate |
Effective width
(ｍｍ) |
Size (except for projection thing) uni mm |
Weight |
| Ｗ |
Ｄ |
Ｈ |
| 340 |
230 |
150 |
24kg |
| AMD-30B |
Single phase
200V-50/60HZ |
0.5KVA(2.5A) |
100%
ED |
200 |
| AMD-40B |
1.0KVA(5A) |
265 |
410 |
230 |
165 |
31kg |
| AMD-50B |
2.4KVA(12A) |
300 |
510 |
300 |
220 |
70kg |
※Wearing of the auto power-off function for turning off this machine by
an option is possible. |
| |
| The other examples of manufacture |
| A downward Demagnetizer machine AMD1003 |
<Specification> |
 |
Model：AMD1003
Size：L695*W353*H187
power source： 3phase-200V-2.5KW(9〜10A)
Weight：128kg
＜a use＞
When Demagnetism material is large, it is a crane etc, and it is Demagnetism.
A main part is hung from a top and Demagnetismed.
A magnetic field comes out downward. |
| Standard tunnel type Demagnetizer |
| Large tunnel type(AMDT-25) |
Small tunnel type(AMDT-10) |
 |
|
power source：1φ200V-6KW(30A)
It is suitable for large-sized and a long thing material.
It is a silent sound design at continuation specification
(100%ED).
Gate size: 250x200 mm Mass: 75 kg |
power source：1φ200V-0.5KW(2.5A
It is suitable for a long thing material.
It is a silent sound design at continuation specification
(100%ED).
Gate size: 100x80mm Mass: 12 kg |

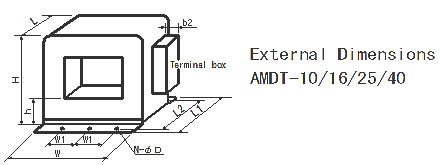

＜ Tunneltypede Demagnetizer standard table＞
| Model |
power input |
Power supply
capacity
(current) |
Using
rate |
Gate size |
size |
Mass |
Ｆｉｔ
cable |
| W |
L |
H |
W1 |
N |
Φd |
b2 |
L1 |
L2 |
h |
| AMDT-10 |
1φ
AC200V
50/60HZ
|
0.5KW(2.5A) |
100％ |
100*80 |
210 |
110 |
205 |
60 |
4 |
9 |
35 |
160 |
135 |
70 |
12kg |
1.25mm2 |
| AMDT-16 |
1.6KW(8A) |
160*125 |
280 |
145 |
250 |
80 |
4 |
12 |
50 |
210 |
180 |
60 |
25kg |
2.0mm2 |
| AMDT-25 |
6KW(30A) |
250*200 |
400 |
226 |
350 |
150 |
6 |
12 |
60 |
384 |
350 |
75 |
75kg |
8.0mm2 |
| AMDT-40 |
11KW(55A) |
400*315 |
540 |
310 |
460 |
200 |
6 |
12 |
80 |
384 |
350 |
75 |
110kg |
14mm2 |
|

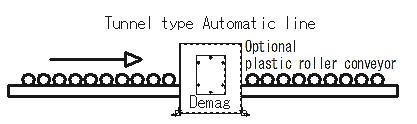

| The example of tunneled type automatic line |
| The right fig is a type of tunneled type Demagnetism.When you set a roller conveyor by the user side, please use the product made from a resin roller.If a metal
material is used for a long time, it will generate heat. |
 |
| The other examples of manufacture |
| ＜Only for pipe material＞（AMDT-50P) |
|
＜Highly efficient type＞（AMDT-25F) |
 |
|
 |
To Long Thick Pipe
Power input：1φ-200V-50A
Size：300*300*300
Hole Size：72φ
Mass：約90kg
<Spec>
For the lines which demagnetizing a pipe
continuously It is suitable also for a pure
round bar by high power. |
|
|
24H operation type
Power input：1φ-200V-30A
Size：W416*D304*H377
gate：W250*H200
Mass：83kg |
| The other examples of manufacture |
A round shape and a vertical tunnel type
of mold etc
(AMDT-10V) |
|
tunnel type, such as mold etc (AMDT-17V) |
 |
|
 |
Input power:1φ200V-0.5KW(2.5A)
Hole Size:φ１５０
continuous operation:100％ED
demagnetizing is possible only
by pouring a pipe type work and
parts by shot. With a cooling device. |
|
Powerful tunnel type vertical moldDemagnetism.
Size：W300*D300*H224
Hole Size：170φ mass：35kg
Input power:1φ-200V-2.0KW(10A)
With a cooling device.
Use：A pipe type and a disk type The gear and a pulley etc.The tempered
material has an effect.Material uses it, moving up and down. |
|
|
